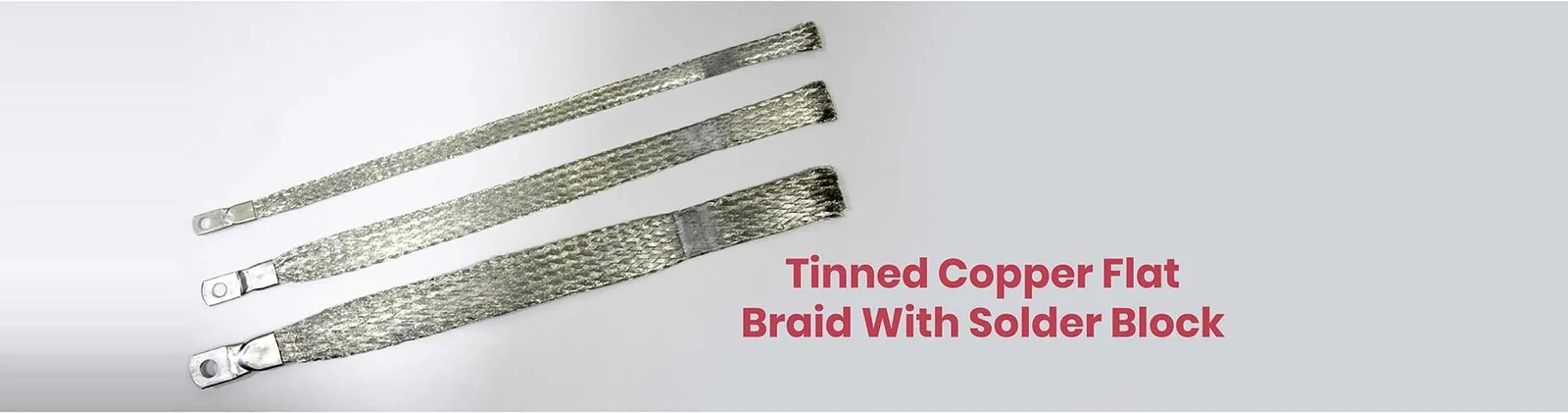

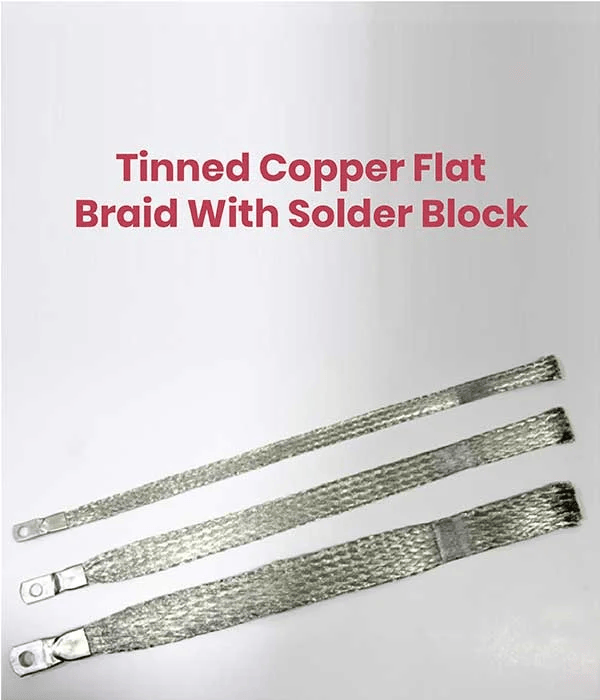

  • Tinned Copper Wire Flat Braid With Solder Block & Connector (Lugs) At One End
  • For Heat And Cold Shrink Termination
  • Material : Cu- Etp Rohs Complient

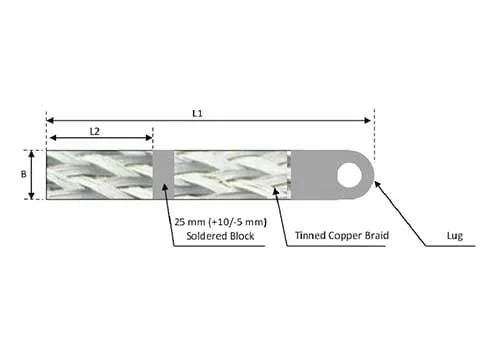

Product Description C.S.A Sq.Mm L2 (+/ - 10 ) MM Lugs (Sq.Mm)
JIFB-10-500SB 10 mm² 60 25
JIFB-25-500SB 25 mm² 60 70
JIFB-35-500SB 35 mm² 60 70
JIFB-50-500SB 50 mm² 60 95
JIFB-70-500SB 70 mm² 60 120
  • Length As Per Customer Requirement
  • Size Of Solder Block Is Standard 25 Mm Tolerance +10 / -5 Mm
  • Wire Diameter 0.19 Mm / 0.15 Mm / 0.12 Mm / 0.10 Mm Can Be Used
